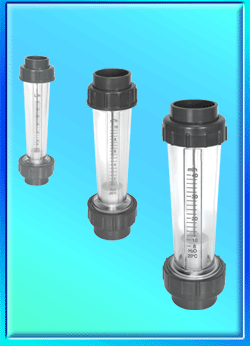

LZM-50 Plastic Tube Type Flowmeter |
|
 |
Model |
Measuringrange
|
Medium
|
Remarks |
LZM-15S16 |
16~160l/h |
Water |
Without
Guide rod |
LZM-15S25 |
25~250l/h
|
LZM-15S40 |
40~400l/h |
LZM-15S60 |
60~600l/h |
LZM-25S16 |
160~1600l/h |
LZM-25S25 |
250~2500l/h |
With
Guide rod |
LZM-32S04 |
0.4~4m3/h |
LZM-32S06 |
0.6~6m3/h |
LZM-50S10 |
1~10m3/h |
LZM-50S16 |
1.6~16m3/h |
LZM-65S25 |
5~25m3/h |
LZM-65S40 |
8~40m3/h |
LZM-65S60 |
12~60m3/h |
|
|

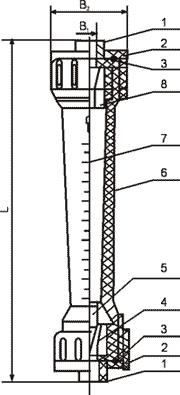

| 外形尺寸mm |
|
|
1. Connection tube
2. Nut
3. O -ring
4. Bottom stop shaft
5. Floater
6. Cone tube
7. Scale
8. Top stop shaft |
Caliber
mm |
Dimensions mm |
L |
B1 |
B2 |
15
|
280
|
φ20
|
φ 45 |
25 |
380
|
φ32 |
φ68 |
32
|
288
|
φ40 |
φ74 |
50
|
341
|
φ63 |
φ98 |
65 |
430 |
φ75 |
φ122 |
Remarks: The material of upper and lower connection tube of this series flowmeter is ABS engineering plastic.
(also can be made for different material or connection form according to the request of the customers) |
|
|
|
|
